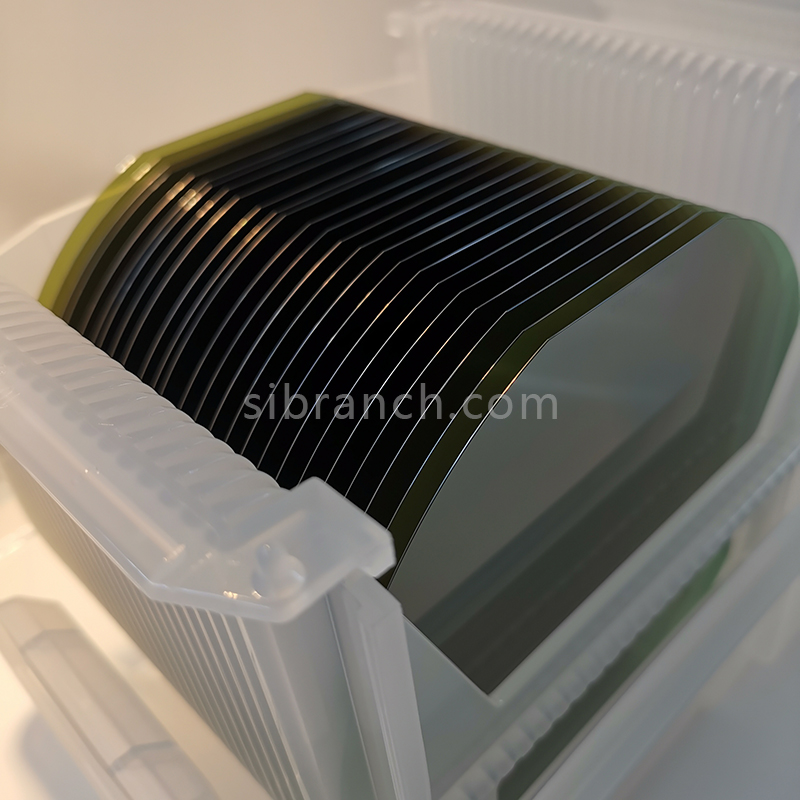

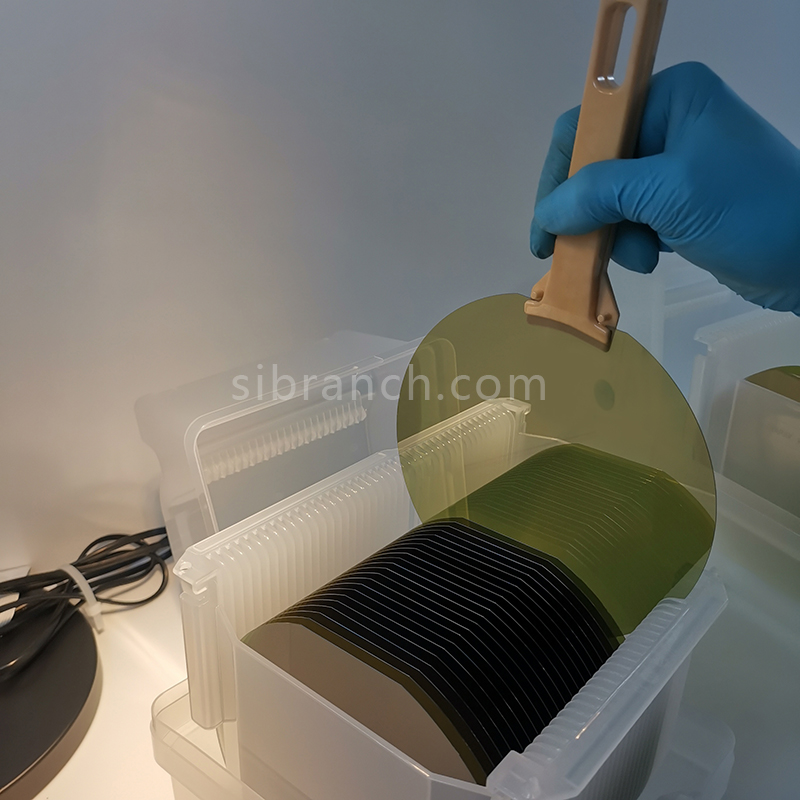

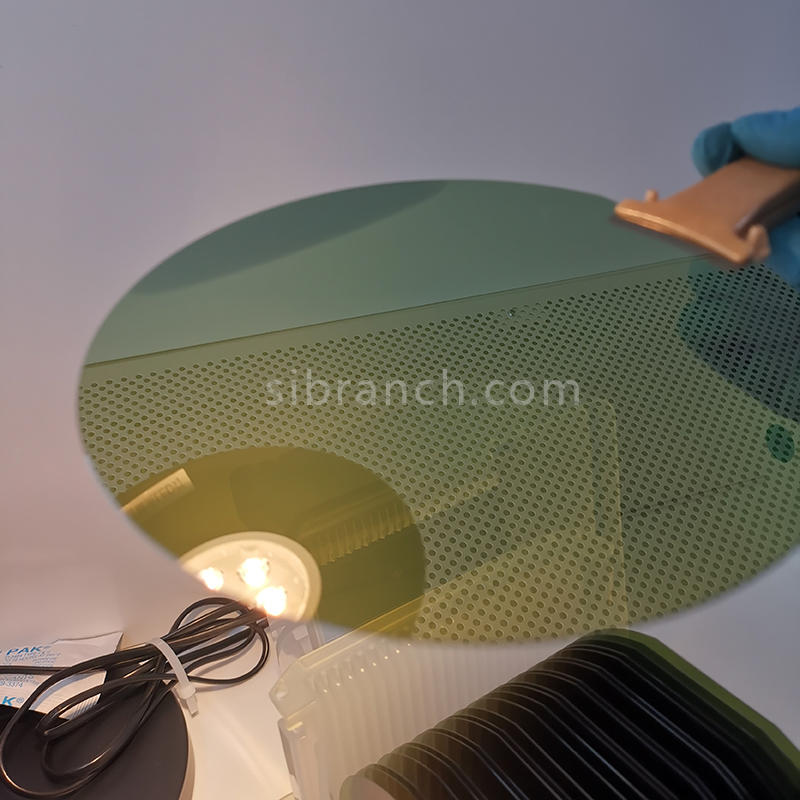

4H N-TYPE Sic, 100MM, 350um WAFER SPECIFICATION
Artic le Number
W4H100N-4-PO(or CO)-350
Description
4H Sic Substrate
Polytype
4H
Diameter
(100+0.0-0.5)mm
Thickness
(350+25)um(Engineering grade+50um)
Carrier Type
n-type
Dopant
Nitrogen
Resistivity(RT)
0.012-0.0250-cm(Engineering grade<0.0250-cm)
Wafer Orientatio
(4+0.5)°
Engineering grade
Production Grade
Production Grade
2.1
2.2
2.3
Micropipe Density
≤30cm-²
≤10cm-²
≤1cm-²
Micropipe Free area
Not specified
≥96%
≥96%
Orientation flat(OF)
Orientation
Parallel{1-100}±5°
Orientation flat length
(32.5±2.0)mm
Identification flat (IF)
Orientation
Si-face:90° cw. from orientation flat±5°
Identification flat length
(18.0+2.0)mm
Surface
Option1: Si-face standard polish Epi-ready C-face optical polish
Option2: Si-face CMP Epi-ready, C-face optical polish
Package
multiple wafer(25)shipping box (single wafer package upon request)
6H N-TYPE SIC 2 WAFER SPECIFICATION
Artic le Number
W6HS1N-0-PM-250-S
Descrption
Production Grade 6H SiC Substrate
Polytype
6H
Diameter
(50.8±38)mm
Thickness
(250±25)um
Carrier Typen
n-type
Dopant
Nitrogen
Resistivity(RT)
0.6-0.10Ω.cm
Wafer Orientation
(0+0.5)°
Micropipe Density
≤100cm-²
Orientation flat orientation
parallel{1-100}±5°
Orientation flat length
(15.88±1.65)mm
Identification flat orientation
Si-face:90°cw. frow orientation flat±5°
Identification flat lenath
(8+1.65)mm
Surface
Si-face standard polish Epi-ready
C-face matted
Package
Package single wafer package or multiple wafer shipping box
